Hyundai Santa Fe: ATF Warmer. Components and Components Location

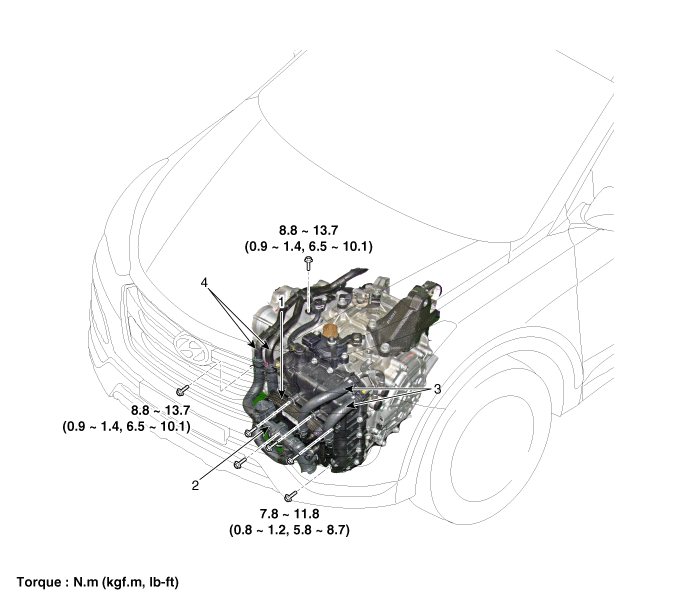

Component Location
|
1. ATF Warmar 2. Bypass valve |
3. ATF hose&pipe 4. Coolant hose&pipe |

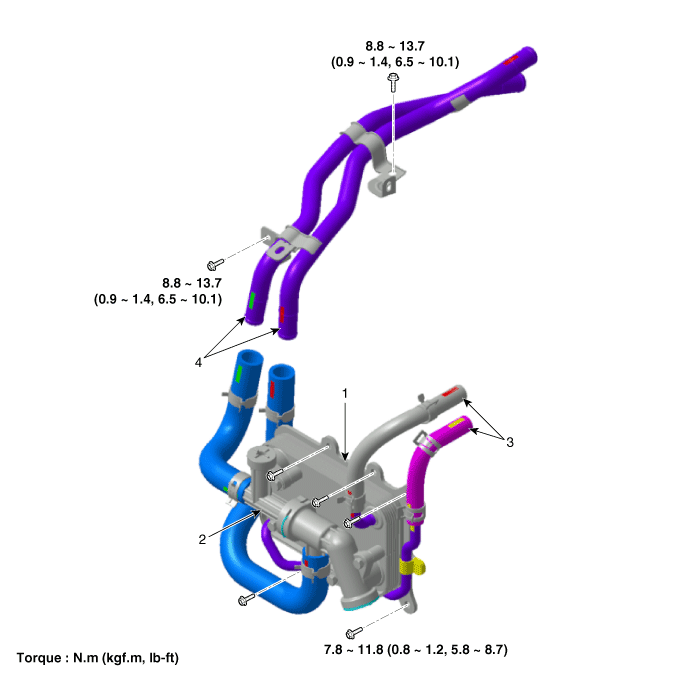

Component
|
1. ATF Warmar 2. Bypass valve |
3. ATF hose&pipe 4. Coolant hose&pipe |
ATF Warmer. Description and Operation
Description The ATF warmer is mounted on the valve body cover to reduce oil viscosity friction by increasing oil temperature under cold condition, which in turn improves fuel efficiency. It is serial mounted ...
ATF Warmer. Repair procedures
Removal 1. Drain the coolant. 2. Remove the air cleaner assembly and air duct. 3. Remove the battery and battery tray. 4. Remove the under cover(A). Tightening torque : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, ...
