Hyundai Santa Fe (DM): Audio Remote Control. Components and Components
Location

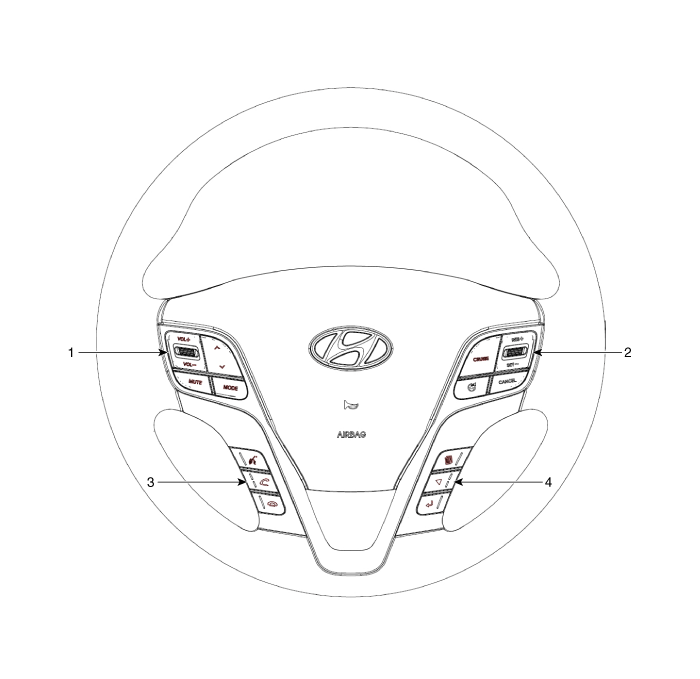

Components
|
1. Remote control switch (LH) 2. Remote control switch (RH) |
3. Bluetooth hands free switch 4. Trip switch |
Antenna. Repair procedures
Inspection Antenna Cable 1. Remove the antenna jack from the audio unit and antenna. 2. Check for continuity between the center poles of antenna cable. 3. Check for continuity between the outer poles of ...
Audio Remote Control. Schematic Diagrams
Circuit Diagram ...
