Hyundai Santa Fe (DM): Battery. Components and Components Location - Charging System - Engine Electrical SystemHyundai Santa Fe (DM): Battery. Components and Components Location

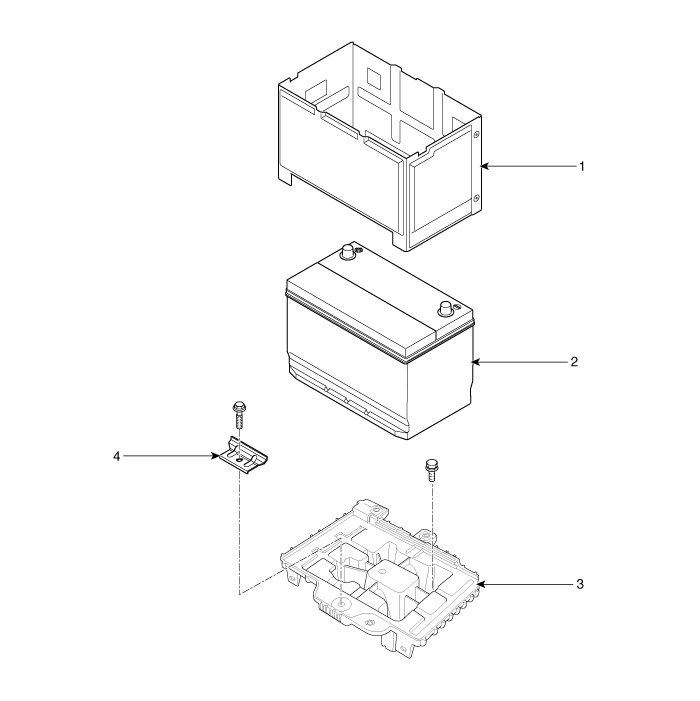

Components

1. Battery insulation pad
2. Battery

 3. Battery tray
4. Battery mounting bracket


Battery. Specifications
Specification Item Specification Model type CMF68L-BCI Capacity [20HR/5HR] (AH) 68 / 54 Cold Cranking Amperage (A) 600 (SAE) / 480 (EN) Reserve Capacity (Min) 110 ...

Battery. Repair procedures
Removal 1. Disconnect the battery (-) terminal and (+) terminal (A). 2. Remove the battery mounting bracket (B) and the insulation pad and then remove the battery (C). 3. Remove the air cleaner. <a ...
