Hyundai Santa Fe (DM): Components and Components Location - Front Suspension System - Suspension SystemHyundai Santa Fe (DM): Components and Components Location

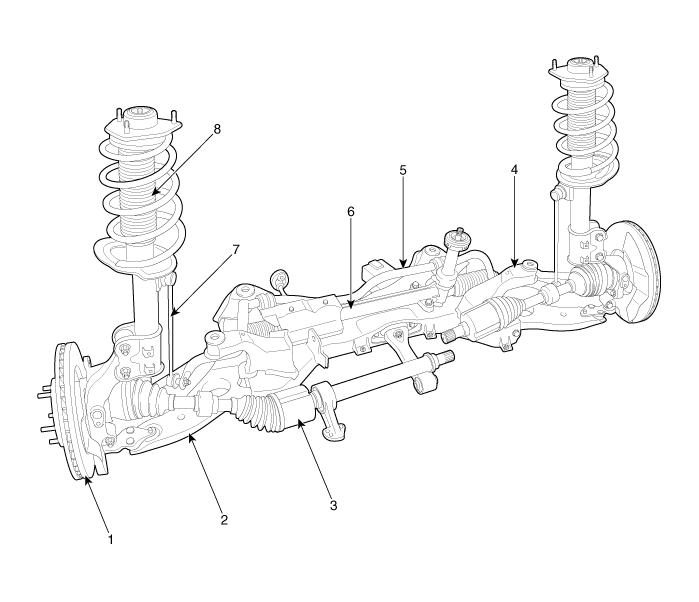

Components Location

1. Front axle
2. Front lower arm
3. Drive shaft
4. Sub frame
 5. Stabilizer bar
6. Steering gearbox
7. Stabilizer link
8. Front strut assembly
