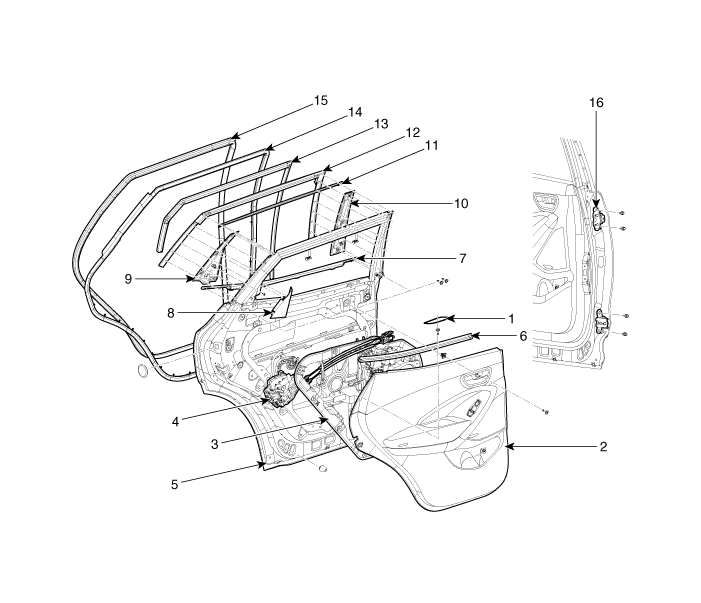

Components

1. Rear door pull cap
2. Rear door trim
3. Rear door module
4. Rear door latch
5. Rear door panel
6. Rear door belt inside weatherstrip
7. Rear door belt outside weatherstrip
8. Rear door delta inner cover
9. Rear door delta garnish
10. Rear door B pillar frame garnish
11. Rear door frame upper moulding
12. Rear door upper opening weatherstrip
13. Rear door glass run
14. Rear door side weatherstrip
15. Rear door body side weatherstrip
16. Rear door hinge


Rear Door
...

Repair procedures
Adjustment Glass Adjustment • Check the glass run channel for damage or deterioration, and replace them if necessary. 1. Remove the rear door trim. 2. Remove the rear door window glass mounting hole ...
