Hyundai Santa Fe (DM): Components and Components Location

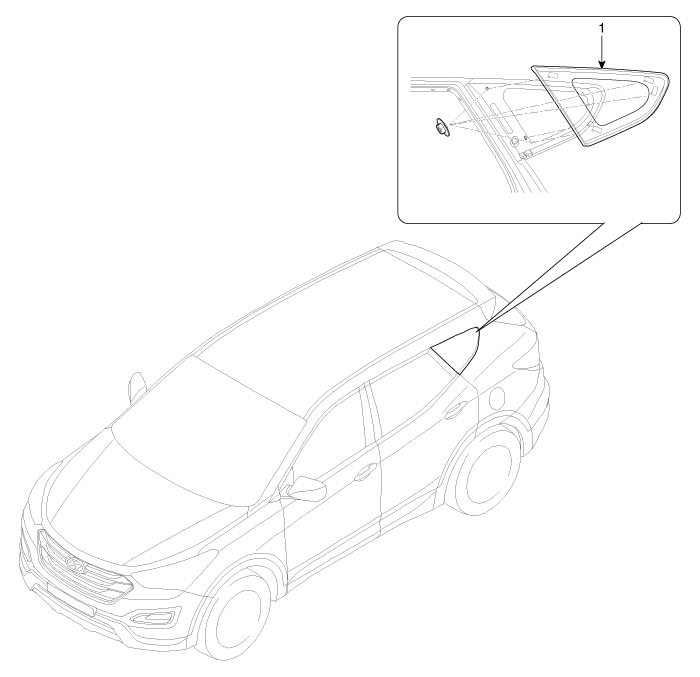

Component Location
|
1. Quarter fixed glass |
|
Repair procedures
Replacement [Removal] • Put on gloves to protect your hands. • Use seat covers to avoid damaging any surfaces. 1. Remove the rear pillar trim. 2. Loosen the quarter fixed glass (A) mounting nuts. Tightening ...
