Hyundai Santa Fe (DM): Components and Components Location

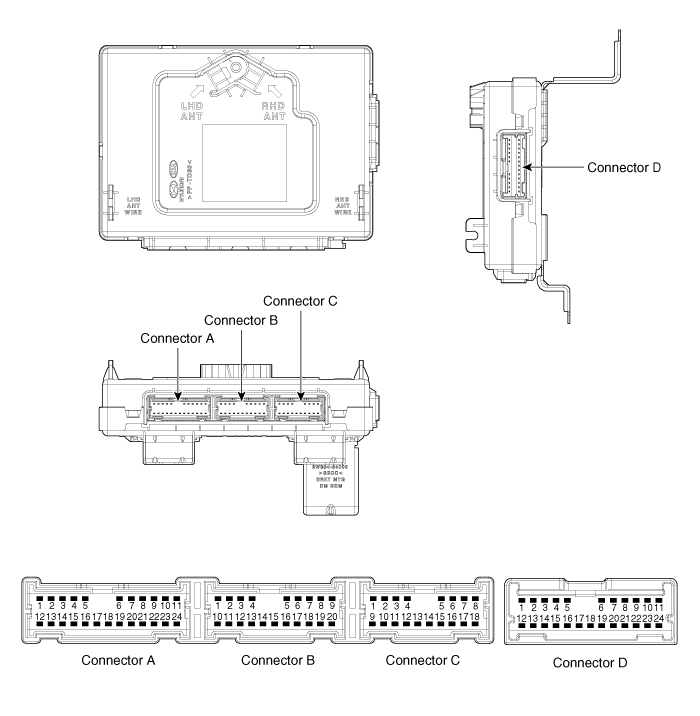

Components
No. |
Connector A |
Connector B |
Connector C |
Connector D |
1 |
IGN1 |
Head lamp low switch |
Wiper low relay |
Room lamp |
2 |
ACC |
Auto light switch |
Burglar alarm relay |
Cornering lamp left relay |
3 |
Wiper INT volume |
- |
Door unlock relay |
- |
4 |
Auto light power |
- |
- |
- |
5 |
K-Line |
Washer switch |
- |
Assistant seat belt indicator |
6 |
- |
Rear wiper switch |
Head lamp low signal |
LIN_PAS |
7 |
- |
Rear wiper INT switch |
- |
B_CAN High |
8 |
- |
Inhibit R (M/T) |
Key hole illumination |
B_CAN Low |
9 |
Defogger switch |
Wiper low switch |
Door lock relay |
C_CAN High |
10 |
Head lamp washer switch |
Key interlock switch |
Rear wiper relay |
C_CAN Low |
11 |
Passing switch |
Head lamp high switch |
Driver door unlock relay |
- |
12 |
Battery + |
Front fog switch |
- |
- |
13 |
IGN2 |
PAS switch (RPAS OFF switch) |
Sunroof control |
Cornering lamp right relay |
14 |
Auto light sensor |
- |
- |
Key solenoid |
15 |
Auto light ground |
Wiper high switch |
Wiper high relay |
ATM solenoid |
16 |
MTS input |
Wiper MIST switch |
PAS indicator (RPAS OFF indicator) |
- |
17 |
Key in switch |
Wiper INT switch |
External buzzer |
- |
18 |
Tail switch |
Rear washer switch |
AV tail |
Door unlock output (AV) |
19 |
- |
Brake switch |
|
Security indicator |
20 |
- |
Wiper parking state |
MTS output |
|
21 |
- |
|
Safety power window enable |
|
22 |
Crash input |
Ground enable |
||
23 |
Sunroof state |
- |
||
24 |
Power ground |
LIN_Rain sensor |
Specifications
Specifications Items Specifications Rated voltage DC 12V Operating voltage DC 9 ~ 16V Operating temperature -30°C ~ 75°C (-4°F ~ 158°F) Dark current Keyless type : 5.5 mA Non keyless type : 3.0 mA ...Schematic Diagrams
