Hyundai Santa Fe (DM): Components and Components Location - Fuel Filler Door - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

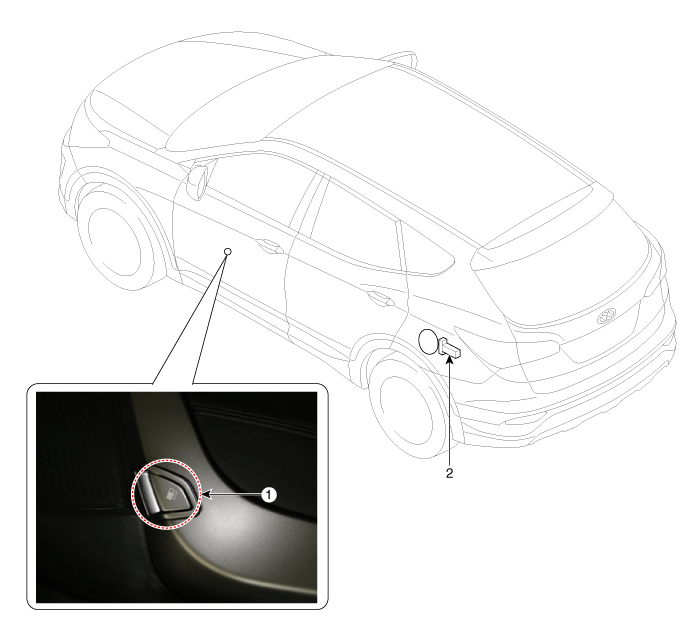

Component Location

1. Fuel filler door open switch
2. Fuel filler door release actuator


Fuel Filler Door Release Actuator. Repair procedures
Inspection 1. Remove the left luggage side trim. 2. Remove the subwoofer. 3. Remove the fuel filler housing after opening the fuel filler door. 4. Loosen the fuel filler actuator mounting bolts (2EA). ...
