Hyundai Santa Fe: Components and Components Location

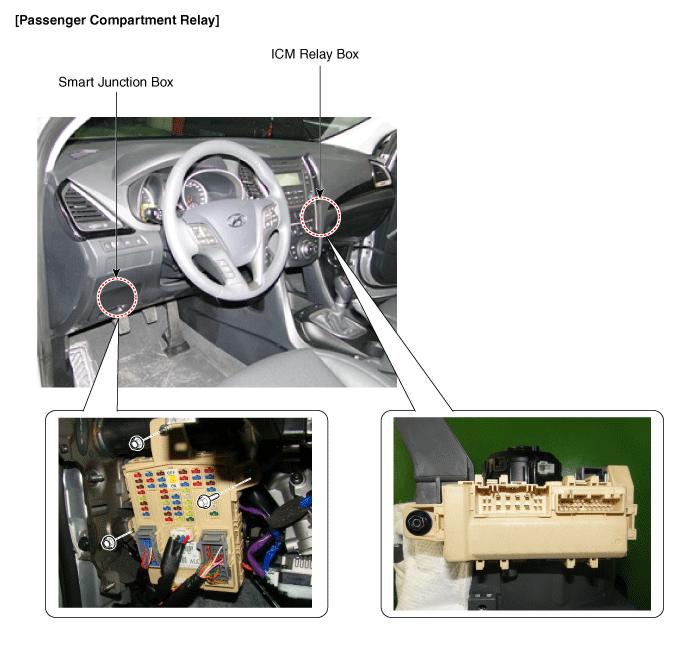

Component Location
|

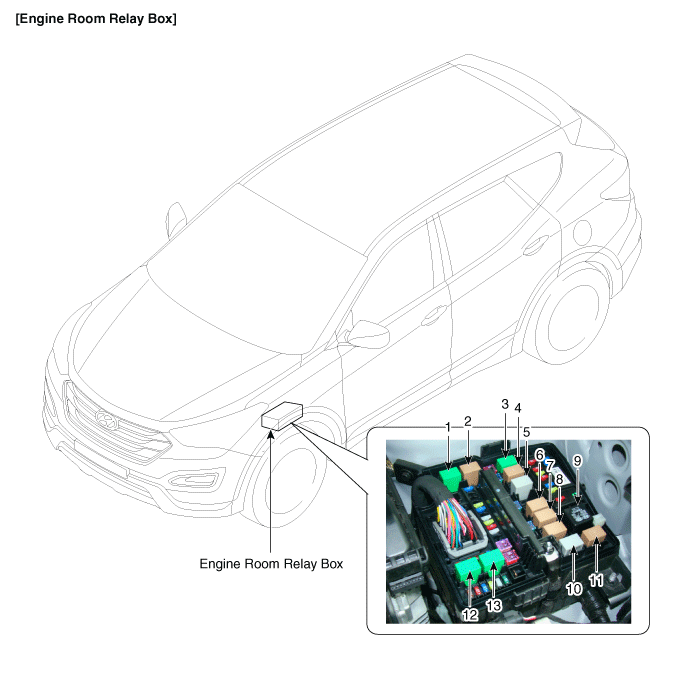

1. Power outlet relay 2. Start relay 3. Front deicer relay 4. Blower relay 5. Wiper relay (Low) |
6. ACC relay 7. IG1 relay 8. IG2 relay 9. Cooling fan relay 10. Wiper relay (High) |
11. Rear defogger relay 12. Horn relay 13. Vaccum pump relay |
Fuses And Relays
...
Relay Box (Engine Compartment). Components and Components Location
Component Location ...
