Hyundai Santa Fe (DM): Components and Components Location - Windshield Deicer - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

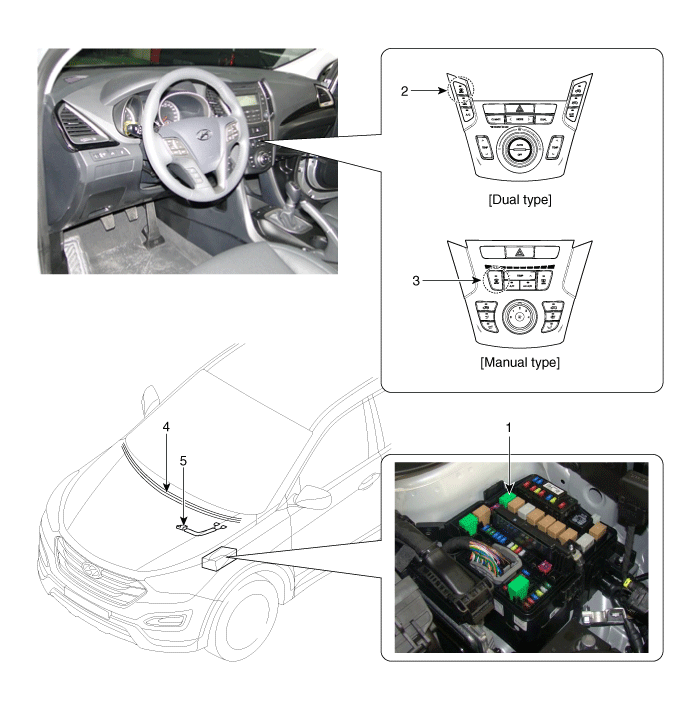

Component Location

1. Windshield deicer relay (Built-in engine room relay box)
2. Windshield deicer switch (Dual type)
3. Windshield deicer switch (Manual type)
4. Windshield deiecr
5. Deicer connector


Description and Operation
Description Windshield deicer system prevent windshield wiper from freezing in the winter season. It consists of deicer in the lower part of windshield, switch and relay. Body control module receives an ...
