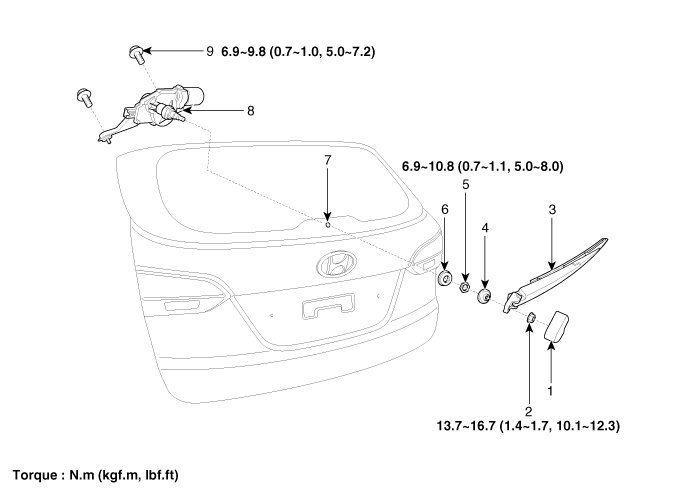

Component Location

1. Rear wiper arm & blade
2. Tailgate glass hole
3. Grommet
4. Rear wiper arm nut

 5. Rear wiper motor assembly
6. Head cap
7. Rear wiper motor bolt


Rear Wiper/Washer
...

Rear Wiper Motor. Repair procedures
Inspection Rear Wiper Motor 1. Remove the connector from the rear wiper motor. 2. Connect battery positive (+) and negative (-) cables to terminals 2 and 1 respectively. 3. Check that the motor operates ...
