Hyundai Santa Fe (DM): Crankshaft Position Sensor (CKPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): Crankshaft Position Sensor (CKPS). Schematic Diagrams

Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Control/Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS). Schematic Diagrams

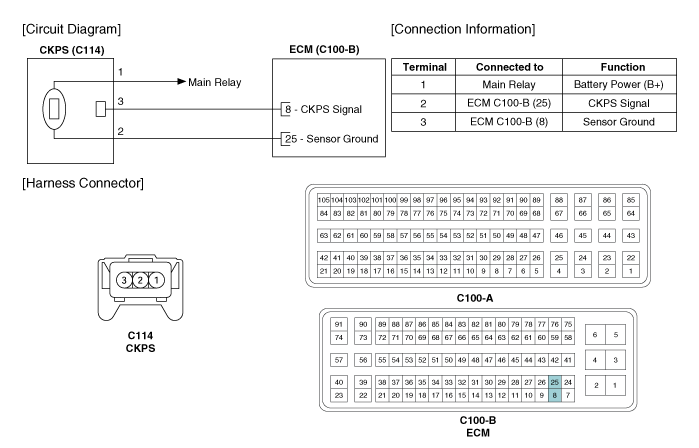

Circuit Diagram
