Hyundai Santa Fe (DM): CVVT Oil Control Valve (OCV). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): CVVT Oil Control Valve (OCV). Schematic Diagrams

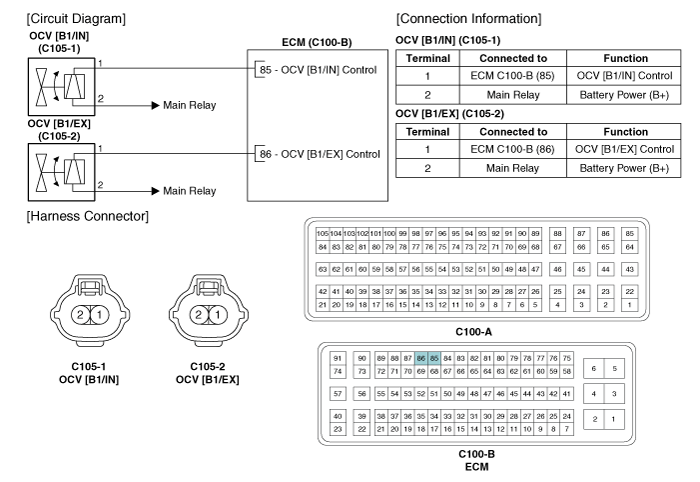

Circuit Diagram


CVVT Oil Control Valve (OCV). Specifications
Specification Item Specification Coil Resistance (Ω) 6.9 ~ 7.9 [20°C(68°F)] ...

CVVT Oil Control Valve (OCV). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2. 4. Check that the resistance is within the specification. Specification: ...
