Hyundai Santa Fe (DM): Dynamic Damper. Components and Components Location - Driveshaft Assembly - Driveshaft and axleHyundai Santa Fe (DM): Dynamic Damper. Components and Components Location

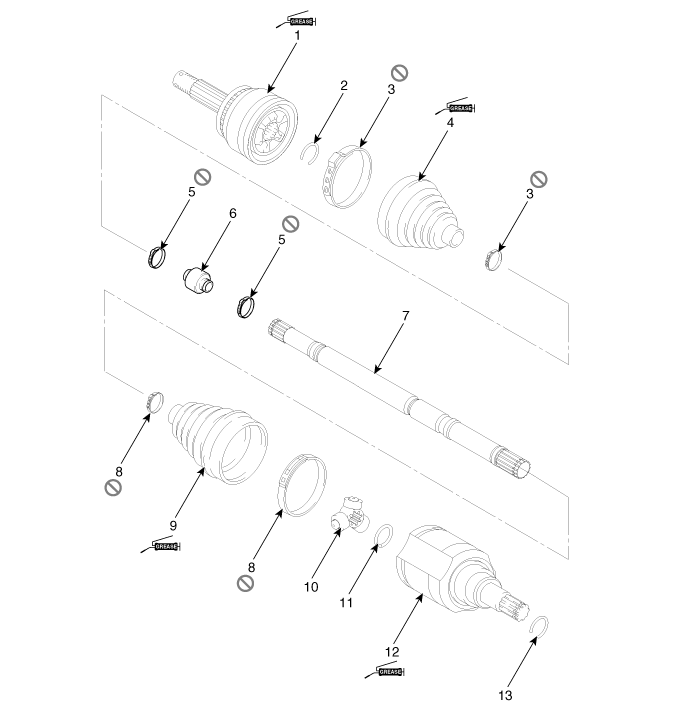

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ housing
13. Housing circlip


TJ Joint. Repair procedures
Removal • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease. • The boot band should be replaced with a new one. 1. Remove the Front Driveshaft. 2. ...

Dynamic Damper. Repair procedures
Removal 1. Remove the front driveshaft. 2. Remove the TJ joint assembly. 3. Remove the remove the both side of band (B) of the dynamic damper (A). 4. Fix the driveshaft (A) with a vice (B) as illustrated. ...
