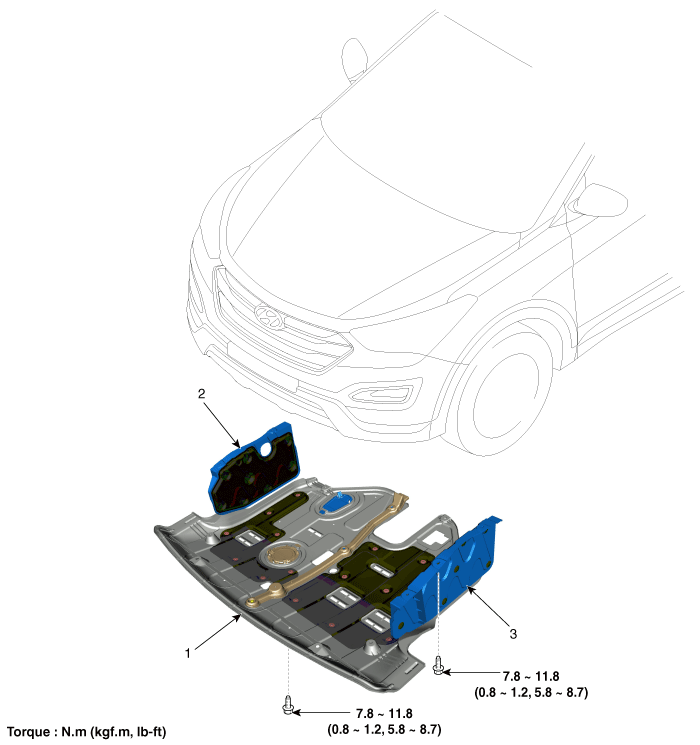

Components

1. Under Cover
2. Side Cover (RH)
 3. Side Cover (LH)


Engine Cover. Repair procedures
Removal and Installation 1. Remove the engine cover (A). 2. Install in the reverse order of removal. ...

Engine Room Under Cover. Repair procedures
Removal and Installation 1. Unfasten the fasteners (A) and bolts (B) then remove the engine room under cover (C). Tightening torque: 7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft) 2. Remove the engine ...
