Hyundai Santa Fe (DM): ESC Control Module. Components and Components Location
Components
|

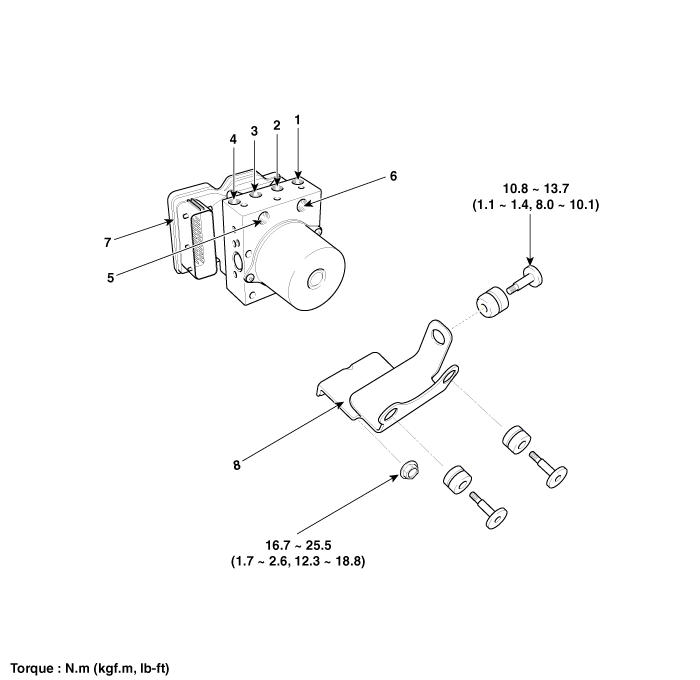

1. Front - left tube 2. Rear - right tube 3. Rear - left tube 4. Front - right tube |
5. MC2 6. MC1 7. ESC control module (HECU) 8. Bracket |
EBD(Electronic Brake-force Distribution). Description and Operation
Operation The EBD system (Electronic Brake force Distribution) as a sub-system of the ABS system is to control the maximum braking effectiveness by the rear wheels. It further utilizes the efficiency of ...
ESC Control Module. Repair procedures
Removal 1. Turn the ignition switch OFF. 2. Remove the brake fluid from the master cylinder reservoir with a syringe. • Be sure to completely remove foreign substances from around brake fluid reservoir ...
