Hyundai Santa Fe (DM): Front Wheel Speed Sensor. Components and Components Location - ESC(Electronic Stability Control) System - Brake SystemHyundai Santa Fe (DM): Front Wheel Speed Sensor. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Brake System / ESC(Electronic Stability Control) System / Front Wheel Speed Sensor. Components and Components Location

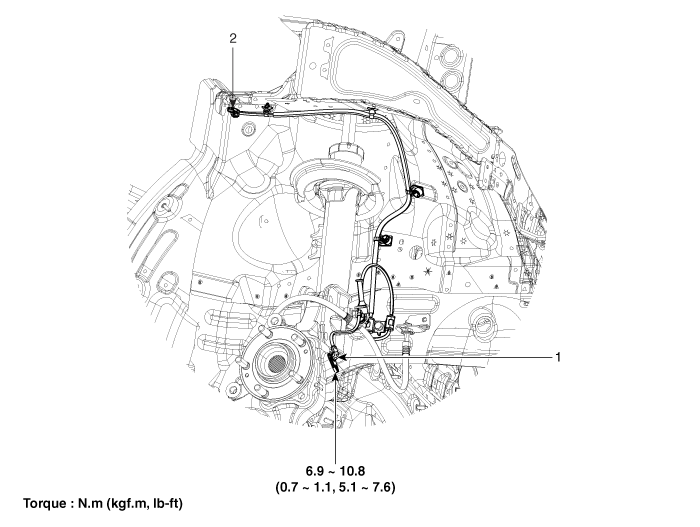

Components

1. Front wheel speed sensor
2. Front wheel speed sensor connector


ESC Control Module. Repair procedures
Removal 1. Turn the ignition switch OFF. 2. Remove the brake fluid from the master cylinder reservoir with a syringe. • Be sure to completely remove foreign substances from around brake fluid reservoir ...

Front Wheel Speed Sensor. Repair procedures
Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Remove the front wheel speed sensor mounting bolt (A). Tightening torque: 6.9 ~ ...
