Hyundai Santa Fe: Instrument cluster - Features of your vehicleHyundai Santa Fe: Instrument cluster

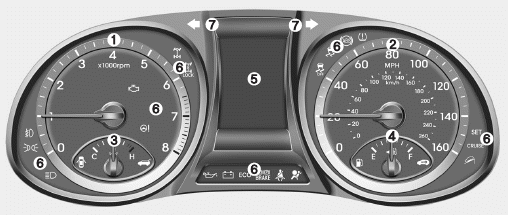

Type A

Type A

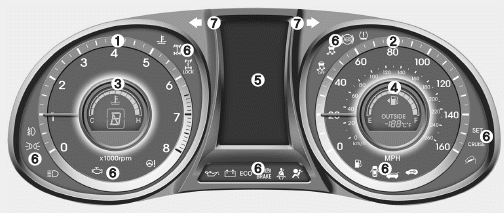

Type B

Type B

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. LCD display
6.Warning and indicator lights (if equipped)
7. Turn signal indicator lights
