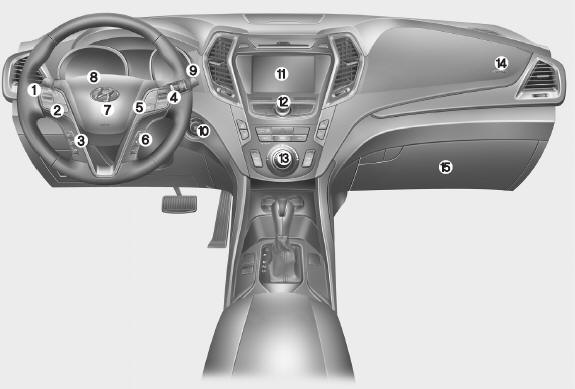

Hyundai Santa Fe (DM): Instrument panel overview
1. Lighting control lever
2. Audio remote control buttons
3. Bluetooth hands-free buttons
4. Cruise control button
5. Flex steer control button
6. LCD display control buttons
7. Horn
8. Driver’s front air bag
9. Wiper and washer control lever
10. Ignition switch/ Engine start/stop button
11. Audio
12. Hazard warning flasher
13. Climate control system
14. Passenger’s front air bag
15. Glove box
