Hyundai Santa Fe (DM): Interior. Body Repair

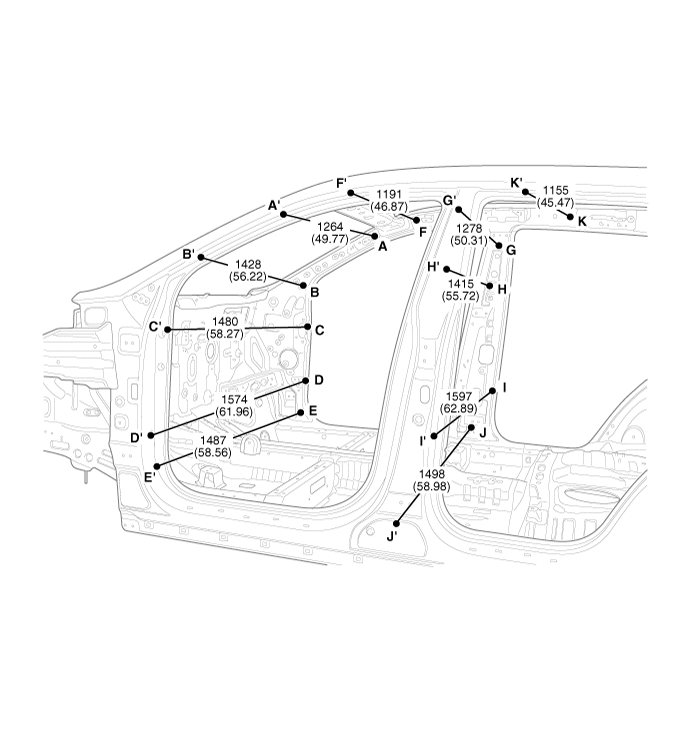

Interior A
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
Interior B
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |

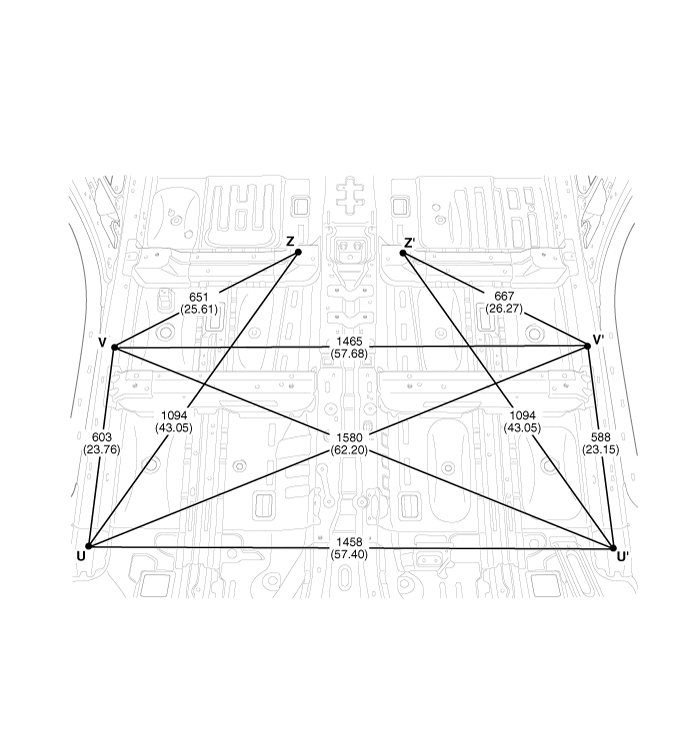

Interior C
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |

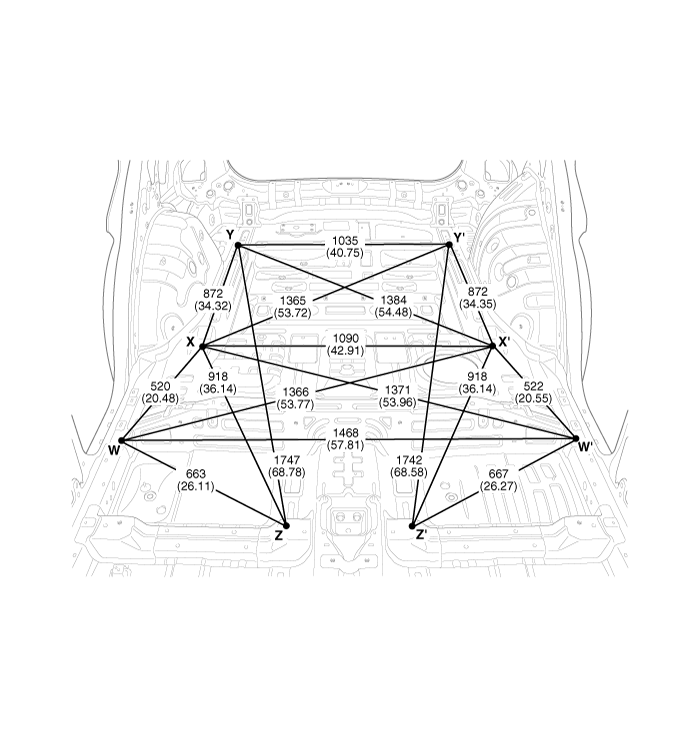

Interior D
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
|
|
|
|
|
Curtain airbag mounting hole (Ø6.6) |
Curtain airbag mounting hole (Ø6.6) |
Cowl crossbar mounting hole (Ø9) |
|
|
|
|
|
Front door checker mounting hole (Ø13) |
Cowl side trim mounting hole (Ø8.5) |
Curtain airbag mounting hole (Ø6.6) |
|
|
|
|
|
Curtain airbag mounting hole (Ø6.6) |
1st seat belt height adjuster upper mounting hole (Ø14.5) |
1st seat belt height adjuster lower mounting hole (Ø14.5) |
|
|
|
|
|
Rear door checker mounting hole (Ø13) |
1st seat belt pretensioner mounting hole (Ø14.5) |
Curtain airbag mounting hole (Ø6.6) |
|
|
|
|
|
2nd seat belt upper mounting hole (Ø14.5) |
Rear door striker mounting hole (Ø13) |
2nd seat belt lower anchor mounting hole (Ø14.5) |
|
|
|
|
|
Curtain airbag mounting hole (Ø6.6) |
2nd seat belt retractor mounting hole (Ø14.5) |
2nd seat belt retractor mounting hole (Ø14.5) |
|
|
|
|
|
Quarter inner panel tooling hole (Ø14.5) |
Quarter inner panel tooling hole (Ø14.5) |
Luggage side trim mounting hole (Ø8.5) |
|
|
|
|
|
Luggage side trim mounting hole (Ø12) |
Rear end cross member tooling hole (Ø17.4) |
Side sill inner reinforcement tooling hole (Ø7) |
|
|
|
|
|
Floor wiring harness mounting hole (12X7) |
Floor wiring harness mounting hole (12X7) |
2nd seat mounting hole (Ø15) |
|
|
|
|
|
Rear floor panel tooling hole (8.5X8.5) |
1st seat mounting hole (Ø11) |
|
