Hyundai Santa Fe (DM): LCD Modes
❈ For controlling the LCD modes, refer to "LCD Display Control" in this chapter.
❈ For "Trip Computer" mode, refer to "Trip Computer" in this chapter.

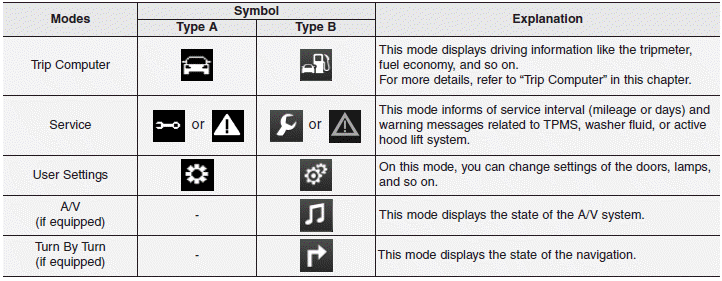

LCD display
...
Service Mode
Service Interval Service in It calculates and displays when you need a scheduled maintenance service (mileage or days). If the remaining mileage or time reaches 900 mi. (1,500 km) or 30 days, "Service ...
