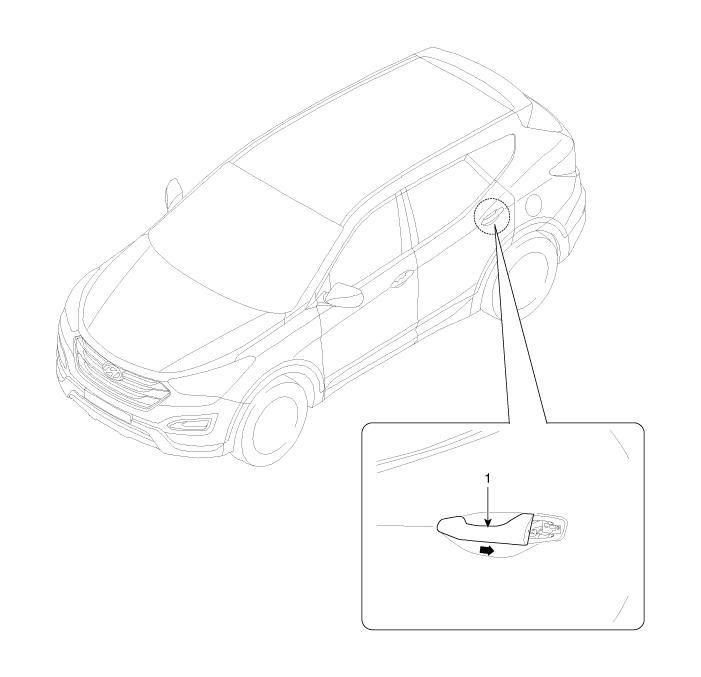

Component Location

1. Rear door outside handle


Rear Door Module. Repair procedures
Replacement 1. Remove the rear door window glass. 2. Remove the rear door outside handle. 3. Disconnect the rear door main connector (A). 4. Loosen the rear door outside handle base mounting bolt (A). ...

Rear Door Outside Handle. Repair procedures
Replacement 1. Remove the hole plug (B). 2. After loosening the mounting bolt, then remove the rear door outside handle cover (A). Tightening torque : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft) ...
