Hyundai Santa Fe (DM): Rear Seat Back Cover. Repair procedures - Rear Seat - Body (Interior and Exterior)Hyundai Santa Fe (DM): Rear Seat Back Cover. Repair procedures

Replacement

[Second row seat assembly]
(LH)
•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the second row seat assembly [LH].
2.
Tilt the rear back armrest towards the front of the vehicle as far as possible.
3.
To remove the rear back armrest (B), loosen the mounting bolts after removing the caps (A).
https://gk-rushim.ru олеиновая кислота купить по цене.

4.

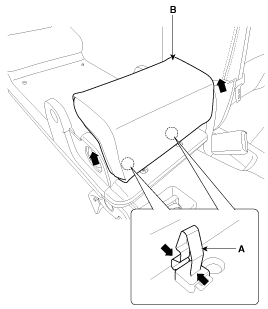

Remove the rear back armrest pad (B) by pulling it out while pressing the both sides of the lock pin (A).
5.
After loosening the mounting bolt and nuts, then remove the rear back armrest bracket (A).
6.
After loosening the mounting bolt, then remove the rear back armrest panel (A).
7.
Push the lock pin (B), remove the rear seat headrest (A).
8.
Using a screwdriver or remover, remove the rear center seat belt upper anchor cover (A).
9.
Remove the rear seat latch mounting support (A) after turning it counter clockwise.
10.
Using a screwdriver or remover, remove the rear seat folding cover (A).
11.
After loosening the mounting screw, then remove the rear seat shield outer cover (A).
12.
Remove the protector (A) located in the bottom side of the rear seat cushion.
13.
Remove the protector (A) located in the bottom side of the rear seat back.
14.
Remove the protector (A) located in the side part of the rear seat back.
15.
Remove the protector (A) located in the upper side of the rear seat back.
16.
Turn the rear seat back cover inside out. Then pull out the headrest guides (A) while pinching the upper part of the guides, and remove them.
17.
Remove the rear seat back cover (A) from the rear seat back frame.
18.
After removing the velcro tape (A) on the rear of seat back and remove the rear seat back cover (B).
19.
Install in the reverse order of removal.
•
Replace any damaged clips.
(RH)
•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the second row seat assembly [RH].
2.
Push the lock pin (B), remove the rear seat headrest (A).
3.
Using a screwdriver or remover, remove the rear seat folding cover (A).
4.
After loosening the mounting screw, then remove the rear seat shield outer cover (A).
5.
After loosening the mounting screw, then remove the rear seat shield inner cover (A).
6.
Remove the protector (A) located in the bottom side of the rear seat cushion.
7.
Remove the protector (A) located in the bottom side of the rear seat back.
8.
Remove the protector (A) located in the side part of the rear seat back.
9.
Remove the protector (A) located in the side of the inner part of the rear seat back.
10.
Remove the protector (A) located in the upper side of the rear seat back.
11.
Turn the rear seat back cover inside out. Then pull out the headrest guides (A) while pinching the upper part of the guides, and remove them.
12.
Remove the rear seat back cover (A) from the rear seat back frame.
13.
After removing the velcro tape (A) on the rear of seat back and remove the rear seat back cover (B).
14.
Install in the reverse order of removal.
•
Replace any damaged clips.
[Third row seat assembly]
•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the third row seat assembly.
2.
Push the lock pin (B), remove the rear seat headrest (A).
3.
Loosen the rear seat frame mounting bolts (A).
Tightening torque :
44.1 ~ 53.9 N.m (4.5 ~ 5.5 kgf.m, 32.5 ~ 39.8 lb-ft)

4.
Push the rear seat cushion frame (A) to the front of the vehicle as far as possible.

5.
Remove the protector (A) located in the side part of the rear seat back.
6.
Remove the protector (A) located in the bottom side of the rear seat back.
7.
Turn the rear seat back cover inside out. Then pull out the headrest guides (A) while pinching the upper part of the guides, and remove them.
8.
Remove the rear seat back cover (A) from the rear seat back frame.
9.
After removing the velcro tape (A) on the rear of seat back and remove the rear seat back cover (B).
10.
Install in the reverse order of removal.
•
Replace any damaged clips.
