Hyundai Santa Fe (DM): Rear Seat Belt Retractor. Components and Components Location - Rear Seat Belt - Body (Interior and Exterior)Hyundai Santa Fe (DM): Rear Seat Belt Retractor. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor. Components and Components Location

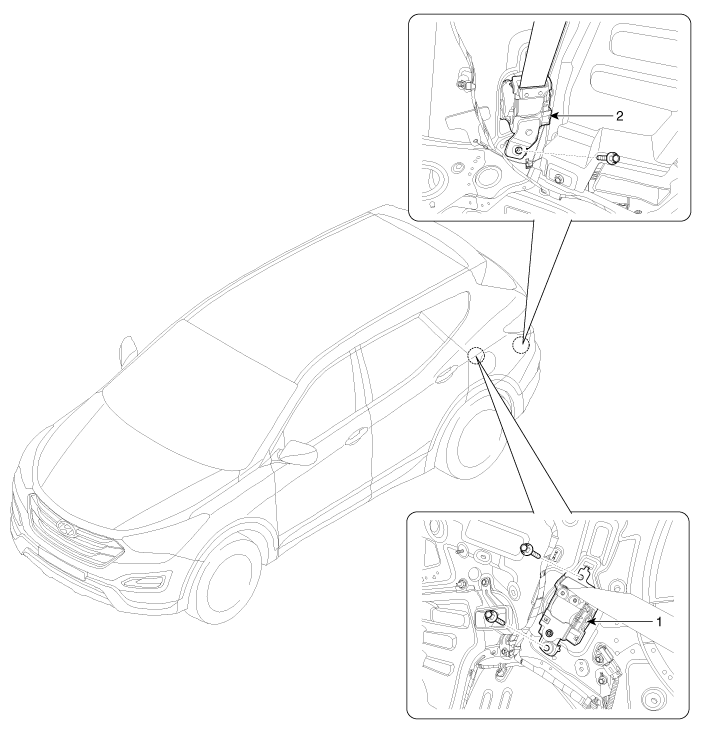

Component Location

1. Second row seat belt retractor
 2. Third row seat belt retractor
