Hyundai Santa Fe (DM): Rear Seat Latch. Components and Components Location
Component Location

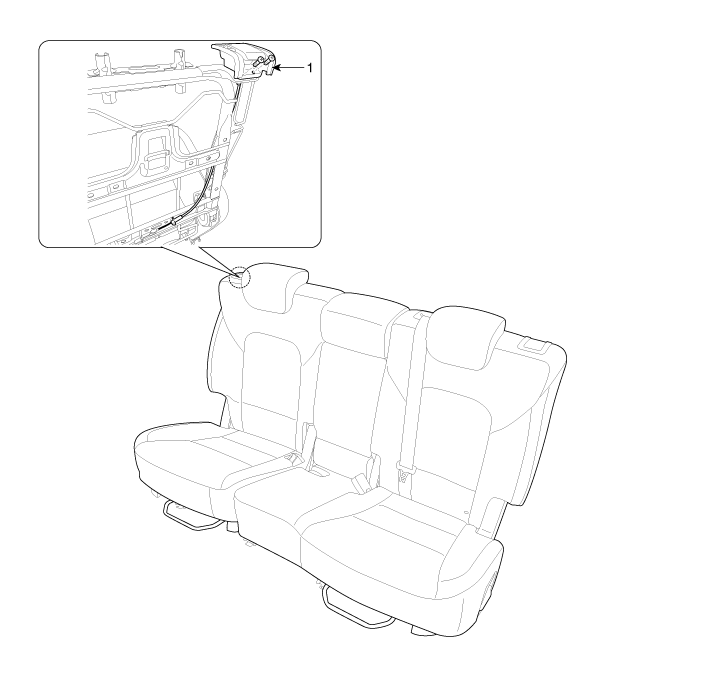

| [Second row seat assembly] |
|
1. Rear seat latch |
|

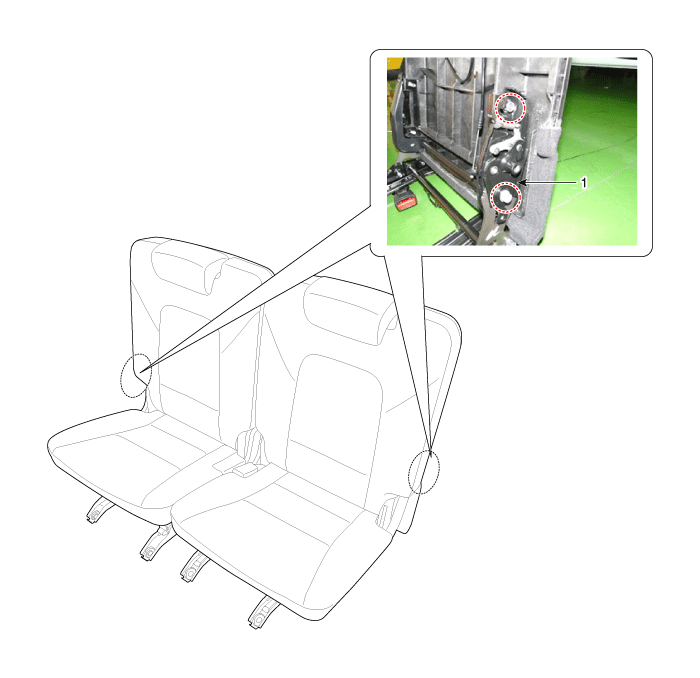

| [Third row seat assembly] |
|
1. Rear seat latch |
|
