Hyundai Santa Fe (DM): Shift Cable. Components and Components Location - Automatic Transaxle Control System - Automatic Transaxle SystemHyundai Santa Fe (DM): Shift Cable. Components and Components Location

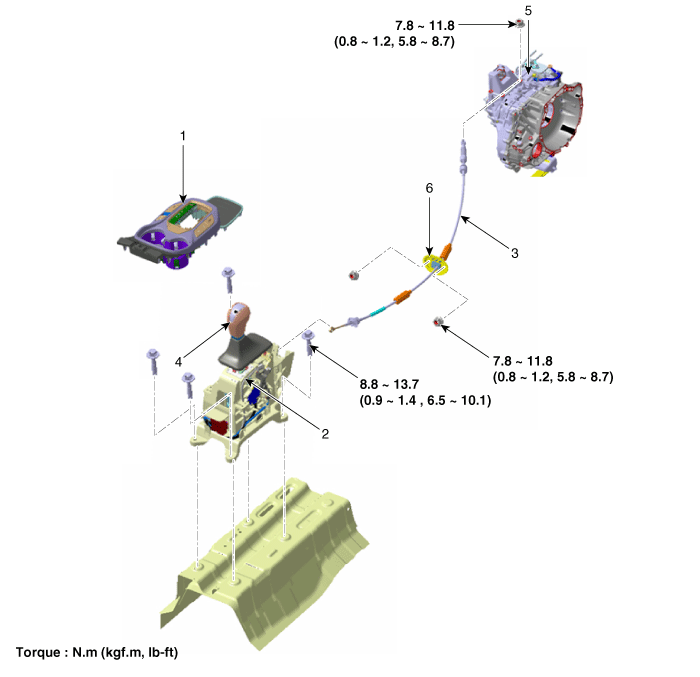

Components

1. Console upper cover
2. Shift lever assembly
3. Shift cable assembly
4. Shift lever knob & boots assembly
5. Manual control lever
6. Retainer


Shift Lever. Repair procedures
Removal 1. Remove the floor console. 2. Remove the air duct. 3. Disconnect sports mode connector (A). 4. Disconnect the shift cable (A). 5. Remove the shift lever assembly (A) by removing the bolts (C-4ea). ...

Shift Cable. Repair procedures
Removal 1. Remove the floor console. 2. Remove the air duct. 3. Disconnect the shift cable (A). 4. Remove the retainer (A) and nut (B). Tightening torque : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8~8.7 lb-ft) ...
