Hyundai Santa Fe (DM): Canister Close Valve (CCV). Schematic Diagrams

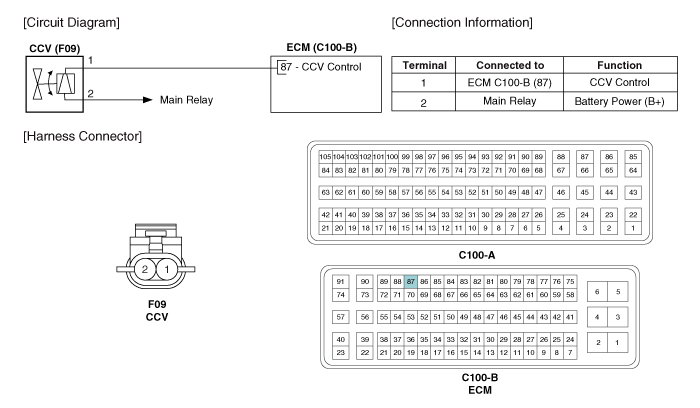

Circuit Diagram
Canister Close Valve (CCV). Specifications
Specification Item Specification Coil Resistance (Ω) 19.9 ~ 22.9 [20°C(68°F) ...
Canister Close Valve (CCV). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the CCV connector. 3. Measure resistance between the CCV terminal 1 and 2. 4. Check that the resistance is within the specification. Specification: ...
