Hyundai Santa Fe (DM): Engine Coolant Temperature Sensor (ECTS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): Engine Coolant Temperature Sensor (ECTS). Schematic Diagrams

Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Control/Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS). Schematic Diagrams

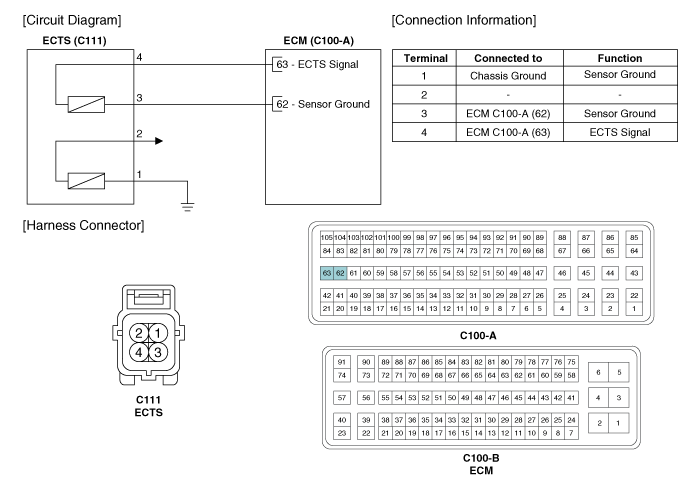

Circuit Diagram


Engine Coolant Temperature Sensor (ECTS). Specifications
Specification Temperature Resistance (kΩ) °C °F -40 -40 48.14 -20 -4 14.13 ~ 16.83 0 32 5.79 20 68 2.31 ~ 2.59 40 104 1.15 60 140 0.59 80 176 0.32 ...

Engine Coolant Temperature Sensor (ECTS). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Remove the ECTS (Refer to "Removal"). 3. After immersing the thermistor of the sensor into engine coolant, measure resistance between the ECTS terminals ...
