Hyundai Santa Fe (DM): Heating and air conditioning - Manual climate control system - Features of your vehicleHyundai Santa Fe (DM): Heating and air conditioning

1. Start the engine.
2. Set the mode to the desired position. To improve the effectiveness of heating and cooling :
- Heating: - Cooling:
- Cooling: 3. Set the temperature control to the desired position.
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air or recirculated air position.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system on

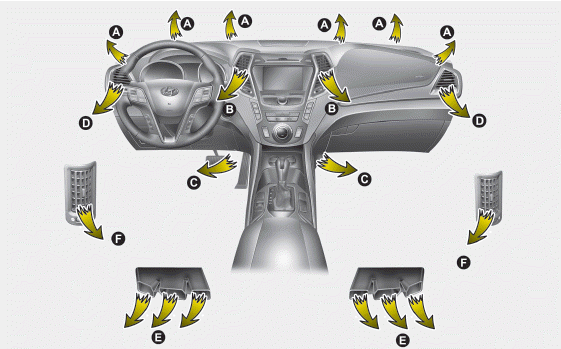

❈ Air outlet vents for rear seat (E, F)

❈ Air outlet vents for rear seat (E, F)

  • The air flow of the rear outlet vents (F)is controlled by the front climate control system and delivered through the inside air duct of the floor.
  • The air flow of the rear outlet vents (E, F) may be weaker than the instrument panel vents for the long air duct.
  • Close the rear outlet vents (F) in cold weather. The air flow of the rear outlet vents may not be as warm during heating operation. (Use the rear outlet vents (F) during cooling operation.)
Manual climate control system
1. MAX A/C (Max air conditioning) button 2. A/C (Air conditioning) button 3. Mode selection buttons 4. Fan speed control knob 5. Rear window defroster button 6. Front windshield defrost button 7. Temperature ...

Mode selection
The mode selection button controls the direction of the air flow through the ventilation system. Face-Level (B, D, F) Air flow is directed toward the upper body and face. Additionally, each outlet can ...
