Hyundai Santa Fe (DM): Rear Seat Back Cover. Components and Components Location
Component Location

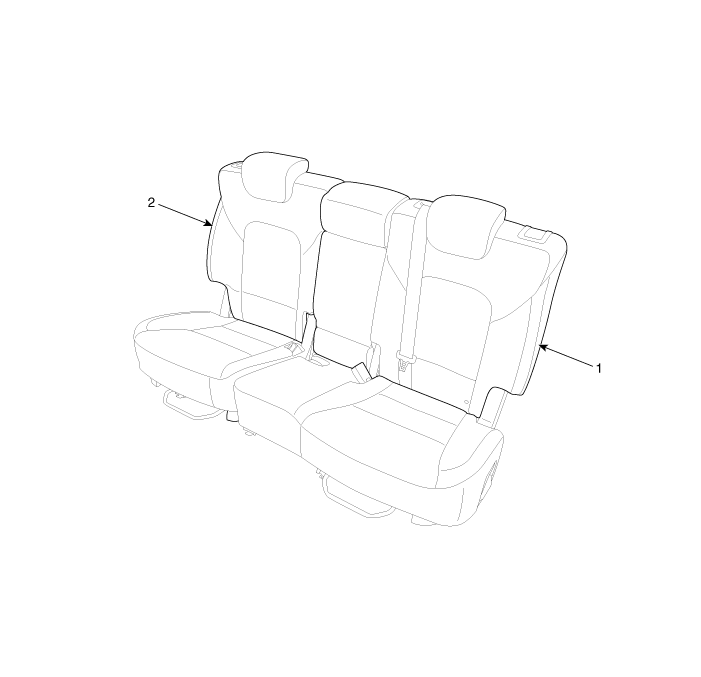

| [Second row seat assembly] |
|
1. Rear seat back cover [LH] |
2. Rear seat back cover [RH] |

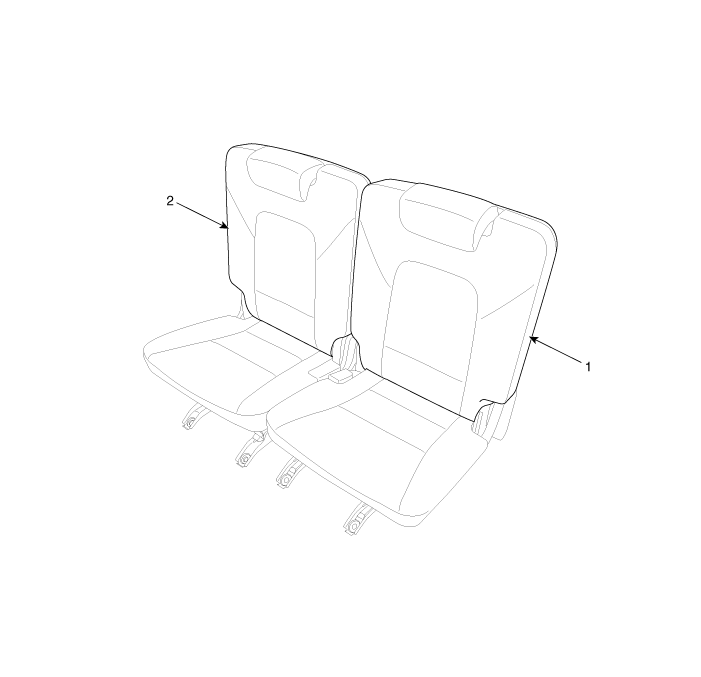

| [Third row seat assembly] |
|
1. Rear seat back cover [LH] |
2. Rear seat back cover [RH] |
Rear Seat Assembly. Repair procedures
Replacement [Second row seat assembly] 1. Push the second row seat assembly [RH] (A) towards the front of the vehicle as far as possible. 2. Loosen the second center seat belt buckle mounting bolt (A). ...
Rear Seat Back Cover. Repair procedures
Replacement [Second row seat assembly] (LH) • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related ...
