Hyundai Santa Fe (DM): Seat Heater (Air Ventilation). Schematic Diagrams - Seat Electrical - Body Electrical SystemHyundai Santa Fe (DM): Seat Heater (Air Ventilation). Schematic Diagrams

Hyundai Santa Fe DM 2013-2018 Service Manual / Body Electrical System / Seat Electrical / Seat Heater (Air Ventilation). Schematic Diagrams

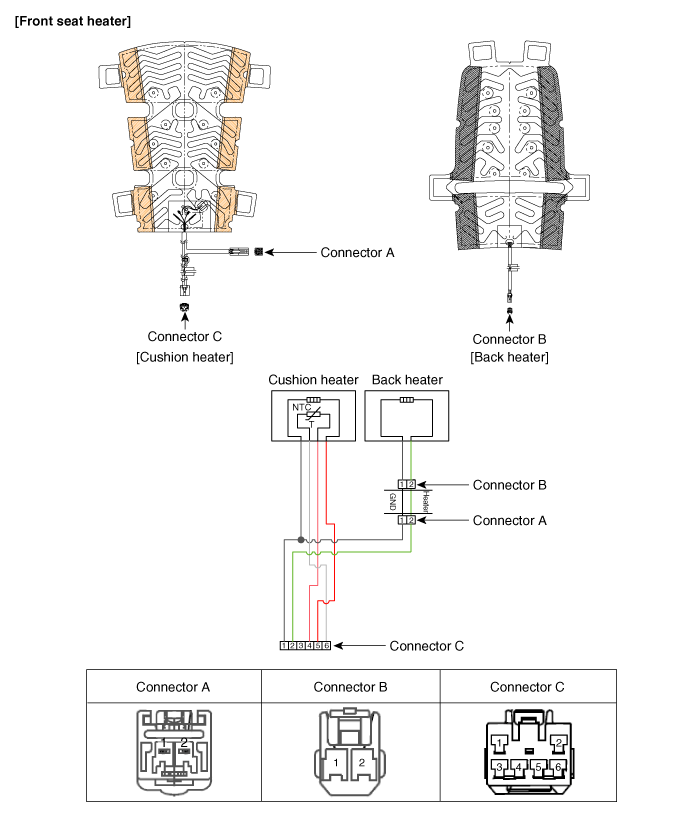

Circuit Diagram


Seat Heater (Air Ventilation). Components and Components Location
Components ...

Seat Heater (Air Ventilation). Repair procedures
Inspection Front Seat 1. Check for continuity and measure the resistance between terminals. No. Description No. Description 1 Heater cushion + 4 Heater back + 2 NTC + 5 - 3 Ground 6 NTC - Standard value ...
