Hyundai Santa Fe (DM): Special Service Tools
Special Service Tools
|
Tools (Number and name) |
Illustration |
Use |
|
09200-3N000 Engine support fixture(Beam) |
money from surveys
|
Removal and installation of the transaxle. Except lower supporter, use beam only with new engine support fixture supporter(SST No.:09200-2S000) |
|
09200-2S000 Supporter |
|
Removal and installation of the transaxle. Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000) |
|
09453-3L240 Oil seal installer(2WD) |
|
Installation of transaxle case oil seal. [Using with bar (SST No.:09231-H1100)] |
|
09453-2W100 Oil seal installer(4WD) |
|
Installation of transaxle case oil seal. [Using with bar (SST No.:09231-H1100)] |
|
09231-H1100 Bar |
|
Installation of transaxle case oil seal. [Using with oil seal installer (SST No.:09453-3L241, 09453-2W100)] |
|
09480-A3800 Inhibitor neutral fixed pin |
|
Inhibitor neutral fixed. |

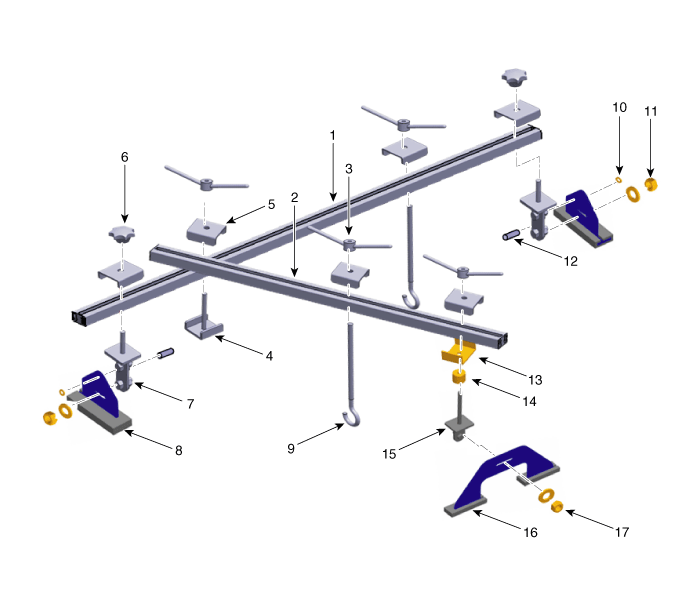

| ※ Engine support fixture special tool assembly drawing |
|
1. 09200-3N000(Main bar) 2. 09200-3N000(Sub bar) 3. 09200-3N000(Handle) 4. 09200-3N000(Stopper) 5. 09200-3N000(Stopper) 6. 09200-3N000(Knobe) 7. 09200-3N000(Adapter) 8. 09200-2S000(Supporter) 9. 09200-3N000(Hanger) |
10. 09200-3N000(Clip) 11. 09200-3N000(Nut) 12. 09200-3N000(Pin) 13. 09200-2S000(Stopper) 14. 09200-2S000(Spacer) 15. 09200-2S000(Adapter) 16. 09200-2S000(Nut) 17. 09200-2S000(Supporter) |
