Hyundai Santa Fe (DM): Components and Components Location

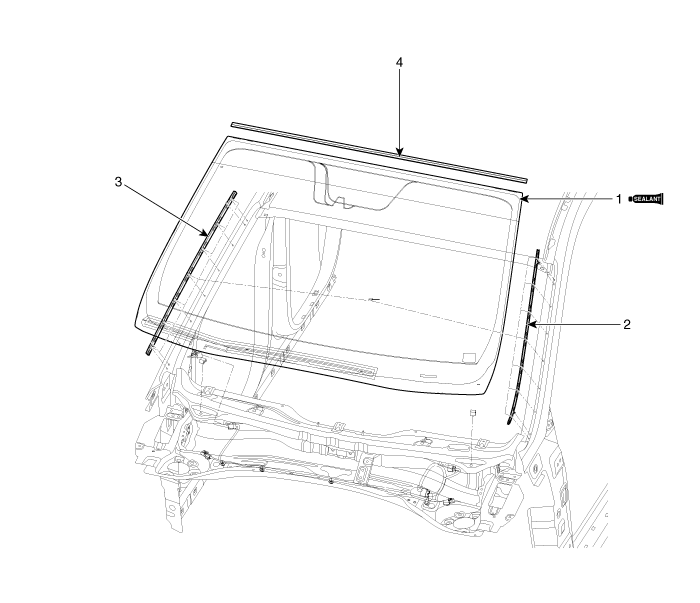

Components
|
1. Windshield side 2. Windshield glass side bracket [LH] |
3. Windshield glass side bracket [LH] 4. Windshield glass upper molding |
Windshield Glass
...
Repair procedures
Replacement [Removal] • Put on gloves to protect your hands. • Use seat covers to avoid damaging any surfaces. 1. Remove the front pillar trim. 2. Remove the cowl top cover. 3. Using a screwdriver ...
