Hyundai Santa Fe (DM): Components and Components Location - Power Door Mirrors - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

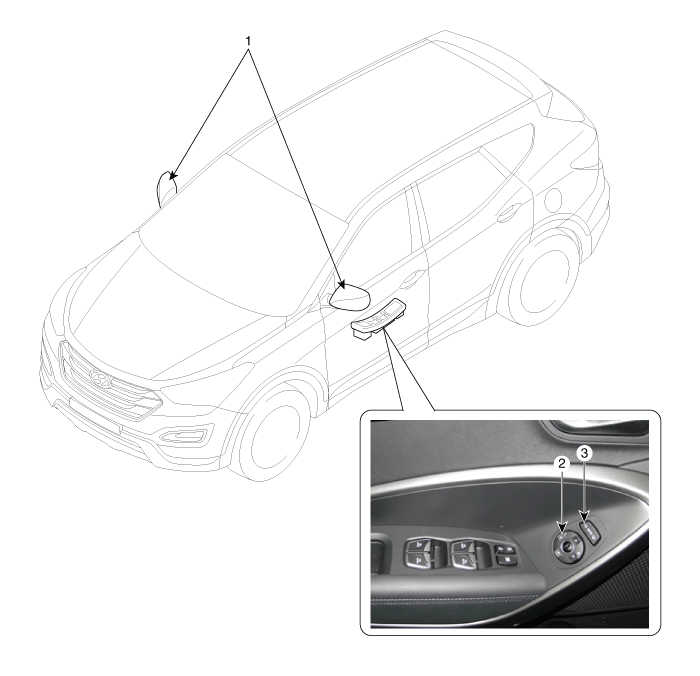

Component Location

1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch
