Hyundai Santa Fe (DM): Power Door Mirror Switch. Schematic Diagrams - Power Door Mirrors - Body Electrical SystemHyundai Santa Fe (DM): Power Door Mirror Switch. Schematic Diagrams

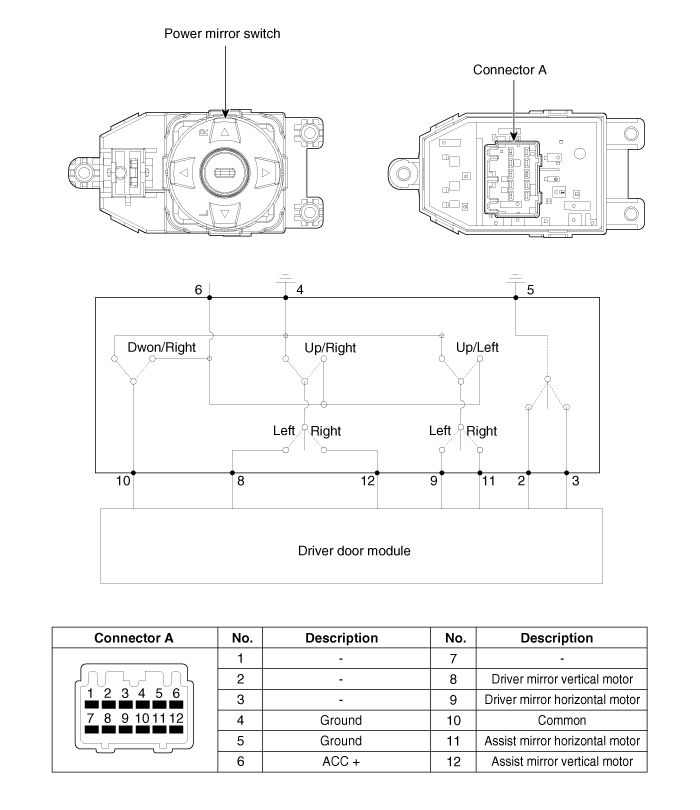

Circuit Diagram


Components and Components Location
Component Location 1. Power door mirror 2. Power door mirror switch 3. Power folding mirror switch ...

Power Door Mirror Switch. Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front left door trim. 3. Remove the power mirror switch (A) from the door trim. Installation 1. Install the power mirror switch. 2. ...
