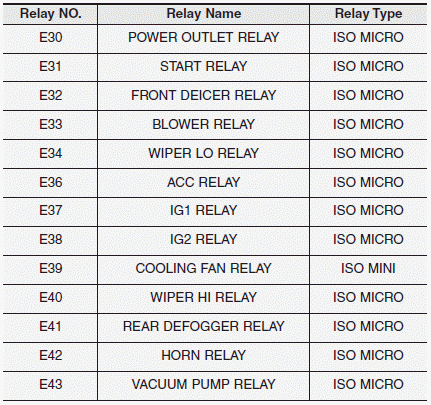

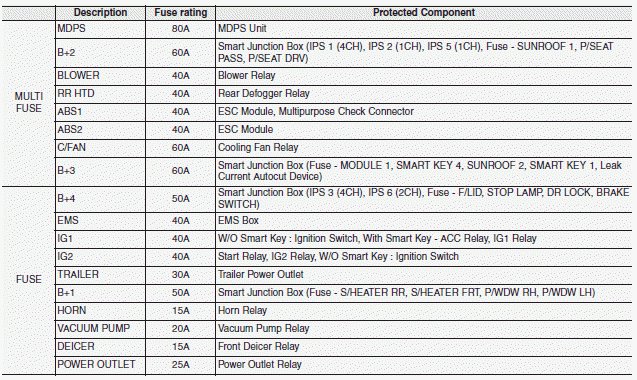

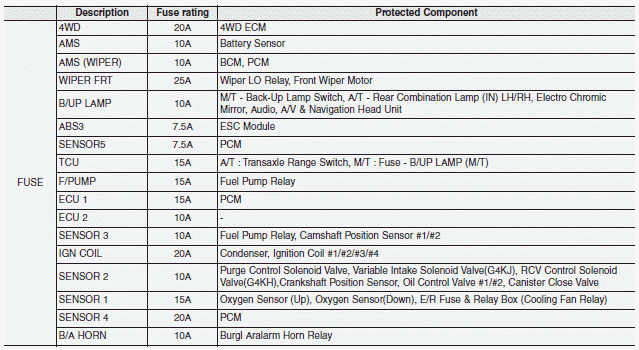

Hyundai Santa Fe (DM): Engine compartment fuse panel - Fuses - MaintenanceHyundai Santa Fe (DM): Engine compartment fuse panel

Light bulbs

Fuse/Relay panel description
Inside the fuse/relay box covers, you can find the fuse/relay label describing fuse/relay name and capacity. ✽ NOTICE Not all fuse panel descriptions in this manual may be applicable to your vehicle. ...

Light bulbs
WARNING - Working on the lights Prior to working on the light, firmly apply the parking brake, ensure that the ignition switch is turned to the “LOCK”position and turn off the lights to avoid sudden ...
