Hyundai Santa Fe (DM): Floor Console Assembly. Components and Components Location - Floor Console - Body (Interior and Exterior)Hyundai Santa Fe (DM): Floor Console Assembly. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Floor Console / Floor Console Assembly. Components and Components Location

Component Location

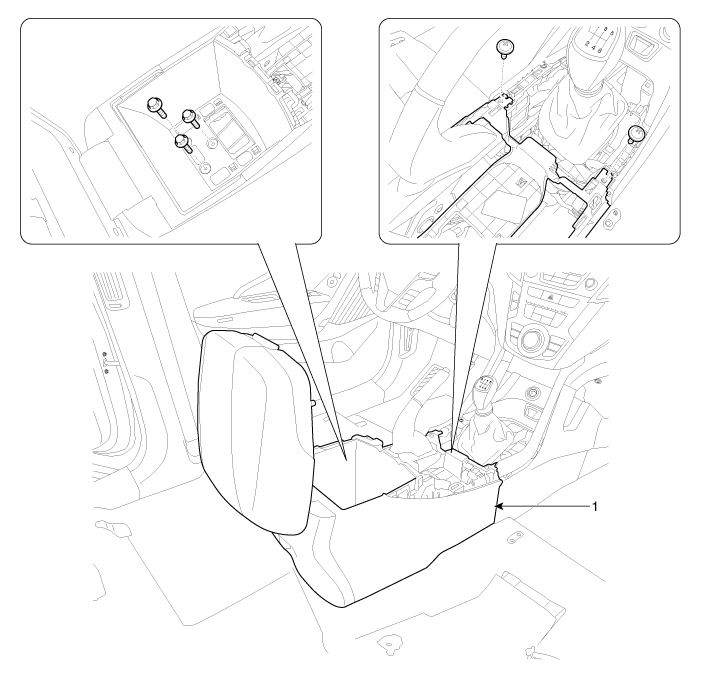

[Console rear complete assembly]

1. Console rear complete assembly

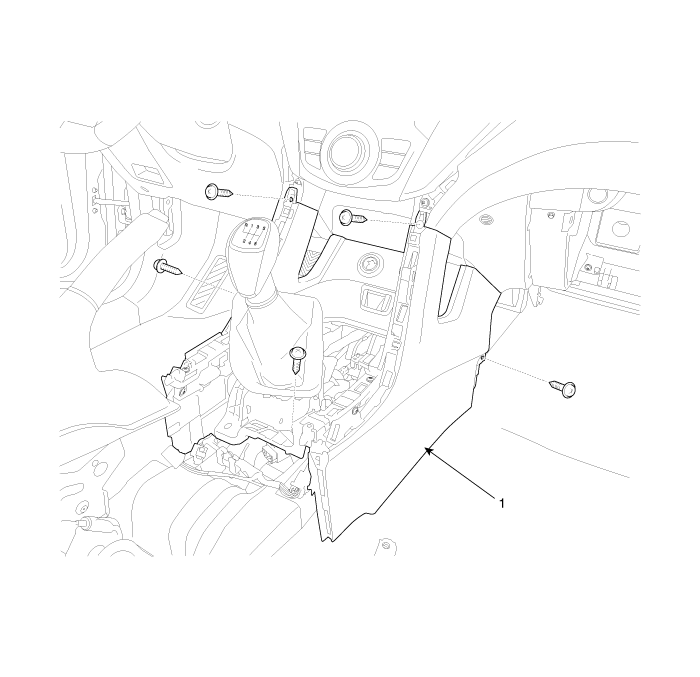

[Console front complete assembly]

1. Console front complete assembly
