Hyundai Santa Fe (DM): Rear Glass Defogger Switch. Repair procedures
Inspection
| 1. |
The windshield deicer switch inputs can be checked
using the GDS.
|
| 2. |
To check the input value of windshield deicer switch,
select option "Body Control Module".
|
| 3. |

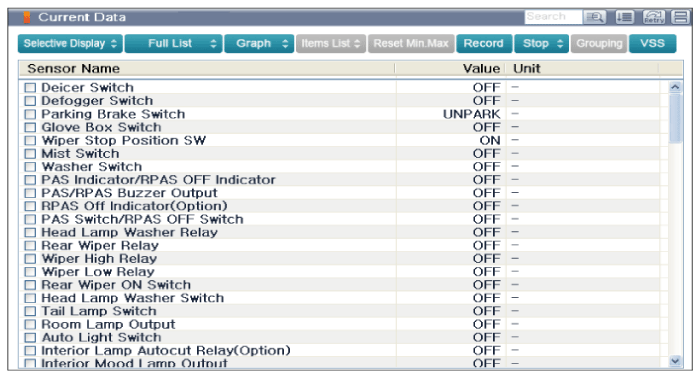

Select option "Current Data".
|
| 4. |

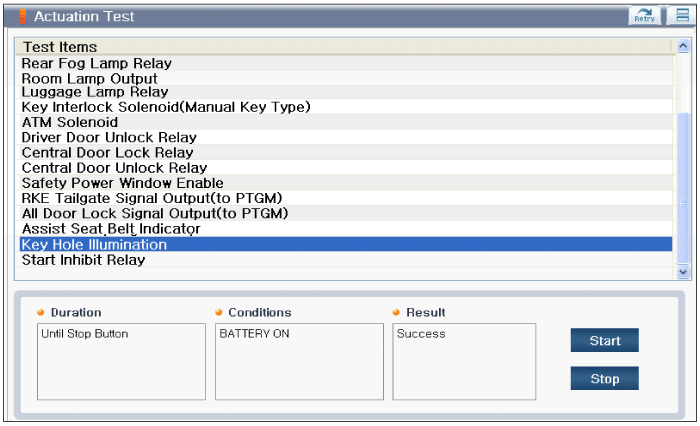

To perform functional test on SJB outputs, select
"Actuation Test".
|
Removal
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the audio unit or the AVN head unit.
|
| 3. |
Remove the heater and A/C controll unit.
|
Installation
| 1. |
Install the heater and A/C control unit.
|
| 2. |
Install the audio unit or the AVN head unit.
|
| 3. |
Connect the negative (-) battery terminal.
|
