Hyundai Santa Fe (DM): Rear Hub - Carrier. Components and Components Location - Rear Axle Assembly - Driveshaft and axleHyundai Santa Fe (DM): Rear Hub - Carrier. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Driveshaft and axle / Rear Axle Assembly / Rear Hub - Carrier. Components and Components Location

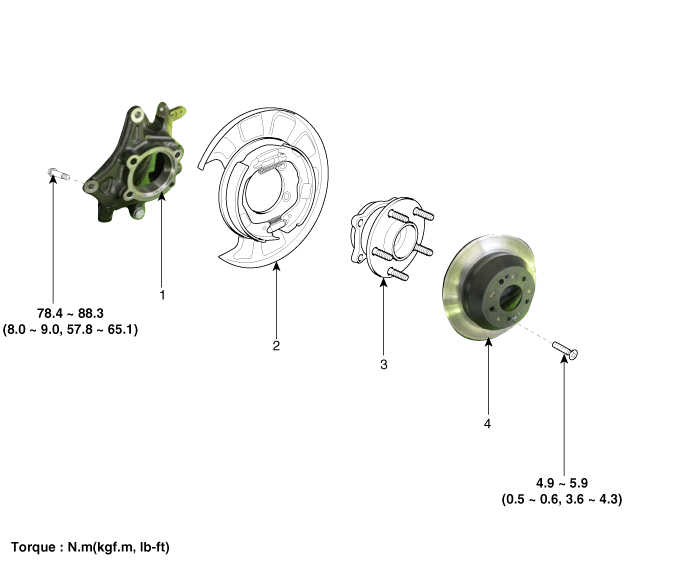

Components

1. Rear carrier assembly
2. Parking brake assembly
 3. Rear hub assembly
4. Rear brake disc


Rear Axle Assembly
...

Rear Hub - Carrier. Repair procedures
Removal 1. Remove the front wheel and tire (A) from front hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) Be careful not to damage to the hub bolts when removing the front ...
