Hyundai Santa Fe (DM): Front Seat Belt Pretensioner. Components and Components Location - Front Seat Belt - Body (Interior and Exterior)Hyundai Santa Fe (DM): Front Seat Belt Pretensioner. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Pretensioner. Components and Components Location

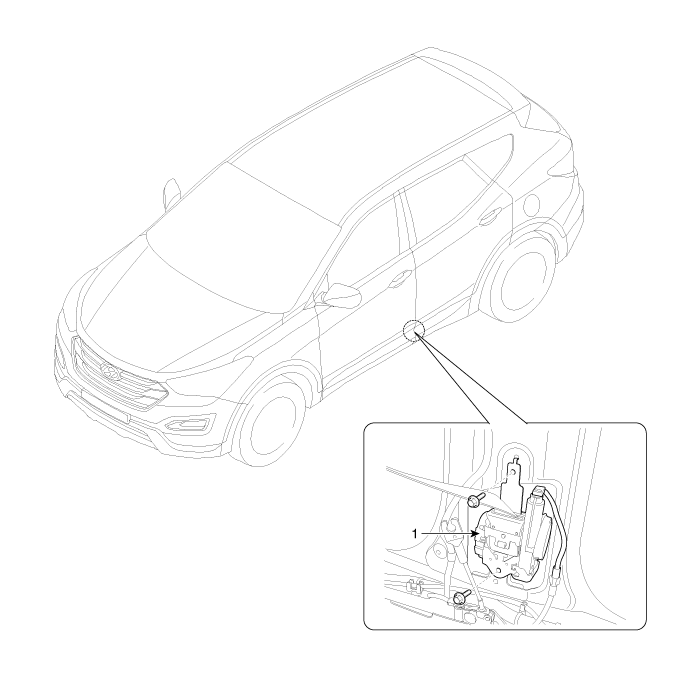

Component Location

1. Front seat belt pretensioner



Components and Components Location
Components 1. Front seat belt pretensioner / EFD system 2. Height adjuster 3. Second row seat belt 4. Third row seat belt ...

Front Seat Belt Pretensioner. Repair procedures
Replacement • When installing the belt, make sure not to damage the pretensioner. 1. Remove the center pillar upper trim. 2. After loosening the mounting bolt, then remove the front seat belt upper anchor ...
