Hyundai Santa Fe (DM): Components and Components Location - Back View Camera System - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

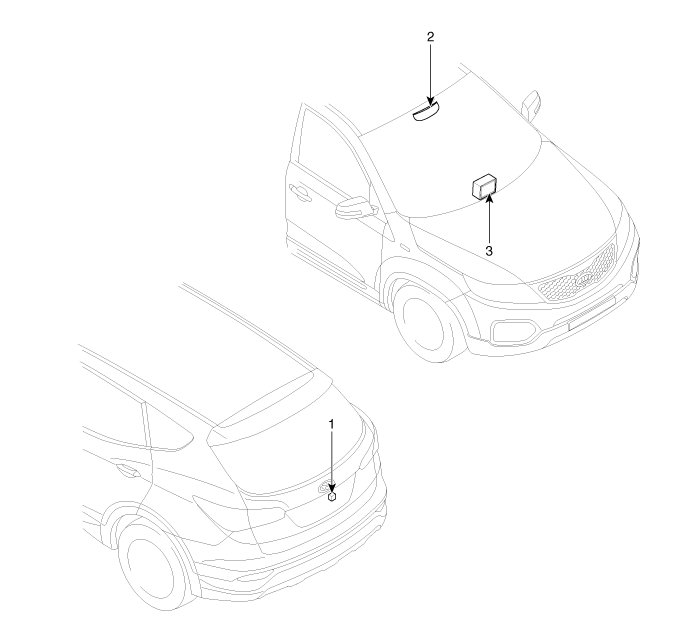

Component Location

1. Back view camera
2. ECM mirror
 3. AVN head unit
